Important specifications
| DN | ID X OD(mm) | Heat Transfer Area | Wall Thickness(mm) | Material | Working pressure |
|---|---|---|---|---|---|
| 12 | 12 x 16 | 0.0614m²/m | 0.15, 0.2, 0.25, 0.3 | 304, 304L, 316L, 321 | up to 21bars |
| 16 | 16 x 20 | 0.0752m²/m | 0.15, 0.2, 0.25, 0.3 | 304, 304L, 316L, 321 | up to 21bars |
| 20 | 20 x 25 | 0.11m²/m | 0.15, 0.2, 0.25, 0.3 | 304, 304L, 316L, 321 | up to 21bars |
| 25 | 25 x 32 | 0.125m²/m | 0.2, 0.25, 0.3 | 304, 304L, 316L, 321 | up to 21bars |
| 32 | 33 x 40 | 0.19m²/m | 0.2, 0.25, 0.3, 0.35 | 304, 304L, 316L, 321 | up to 21bars |
| 40 | 40 x 50 | 0.238m²/m | 0.2, 0.25, 0.3, 0.35, 0.4 | 304, 304L, 316L, 321 | up to 21bars |
| 50 | 50 x 60 | 0.286m²/m | 0.2, 0.25, 0.3, 0.35, 0.4 | 304, 304L, 316L, 321 | up to 21bars |
| 65 | 65 x 82 | 0.57m²/m | 0.3, 0.35, 0.4, 0.5 | 304, 304L, 316L, 321 | up to 21bars |
| 80 | 80 x 96 | 0.6m²/m | 0.3, 0.35, 0.4, 0.5 | 304, 304L, 316L, 321 | up to 21bars |
| 100 | 100 x 122 | 0.91m²/m | 0.3, 0.35, 0.4, 0.5 | 304, 304L, 316L, 321 | up to 21bars |
We can also offer coils in customized pitch profiles and thickness for heat pumps & solar situations.

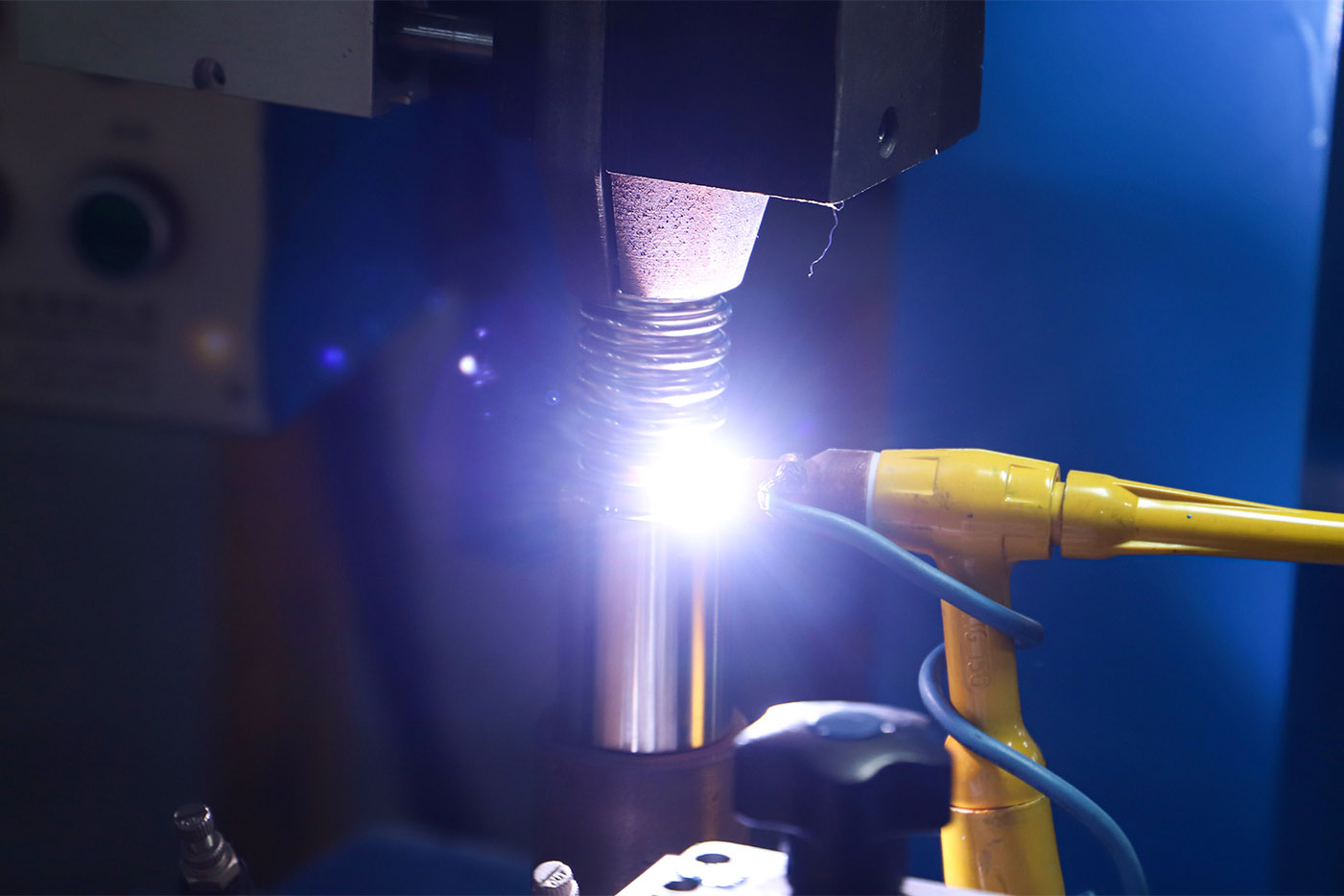

Modern machinery
By utilizing state-of-the-art automated precision machinery, we ensure high efficiency in all production phases. This allows us to respond flexibly to individual customer requests and quickly to changing requirements.

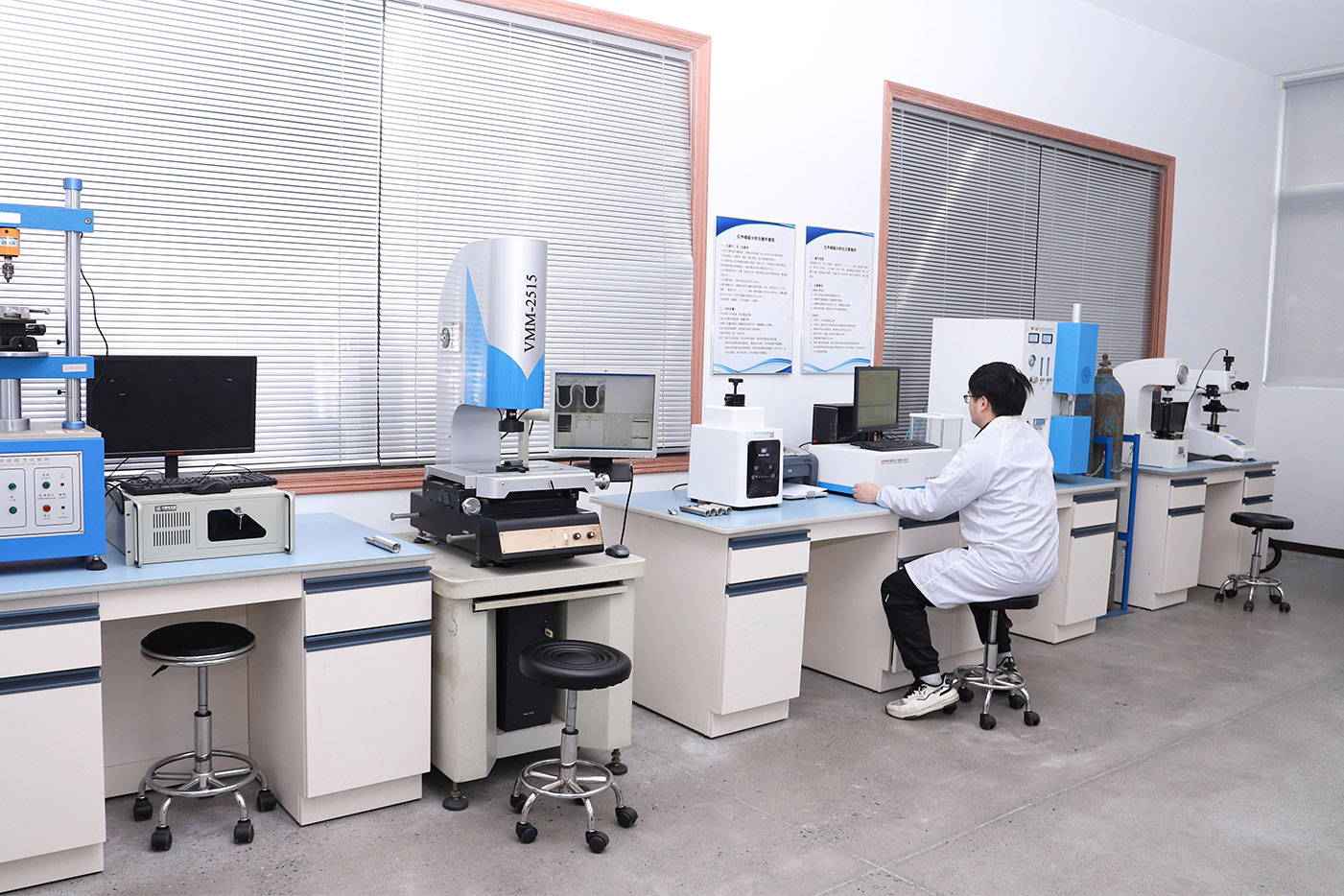

Absolute quality through precision and control
Absolute quality is our top priority. Our corrugated tubes undergo the strictest testing procedures and are 100% tested with helium. We combine innovative technology with extensive expertise to ensure a high level of customer satisfaction.
connecting parts
Fitting production takes place in our modern machinery. By using high-precision manufacturing technologies, we ensure production in compliance with the strictest quality standards.
We manufacture all fittings according to your requirements and specifications, ensuring tailor-made solutions. Our fittings are characterized by precision, durability, and quality.
